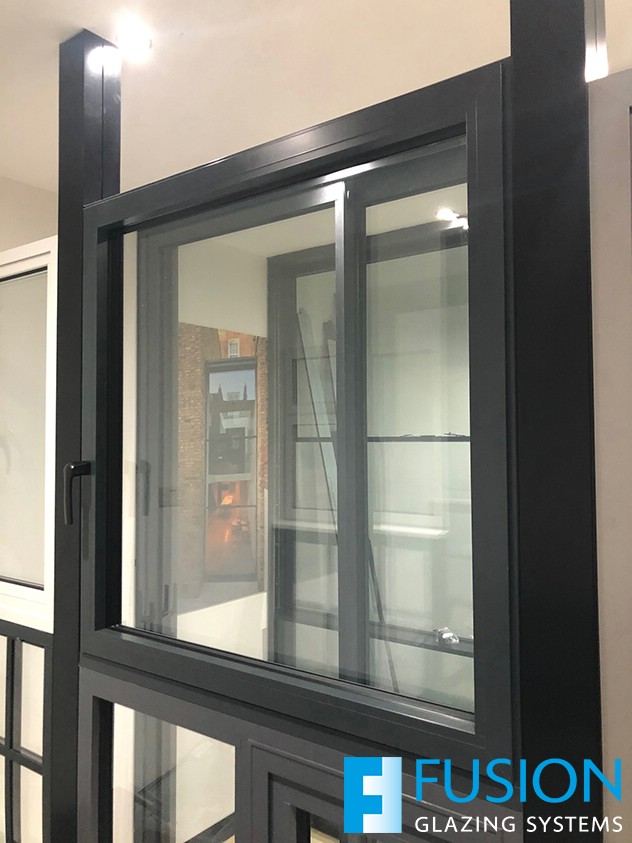

FGS Slim Tilt and Turn Window System
FGS Slim Tilt and Turn Window System
Fusion Glazing Systems offers a very slim high performance tilt and turn window system. With only 65mm of total frame between glass and wall, it is the slimmest Tilt and turn window in the UK.
FGS Tilt and Turn Window System, is an open inwards window. It can tilt inwards at the top for ventilation, in a secure open position, and then turn inwards. It can achieve fairly large openings. Double French casement configuration is possible too. It can be large enough as a single panel to look like, and work like a door.
We can powder coat the window the Classic RAL colour of your choice. Handles can be black, satin silver or white.
The handle can be plain for simplicity or have a key for added security. The window can come with or without a cill.
Min max sizes:
Single window:
Max Width (mm): 1100mm
Max Height (mm): 2100mm
Single window tilt and turn with bottom panel fixed:
Max Width (mm): 1275mm
Max Height (mm): 2450mm
Double window:
Max Width (mm): 1805mm
Max Height (mm): 2417mm
Performance:
Air Permeability class: 4
Water tightness class: 9A
Resistance to wind load class: C2
Performance:
Air Permeability class: 4
Water tightness class: E750
Resistance to wind load class: C4
