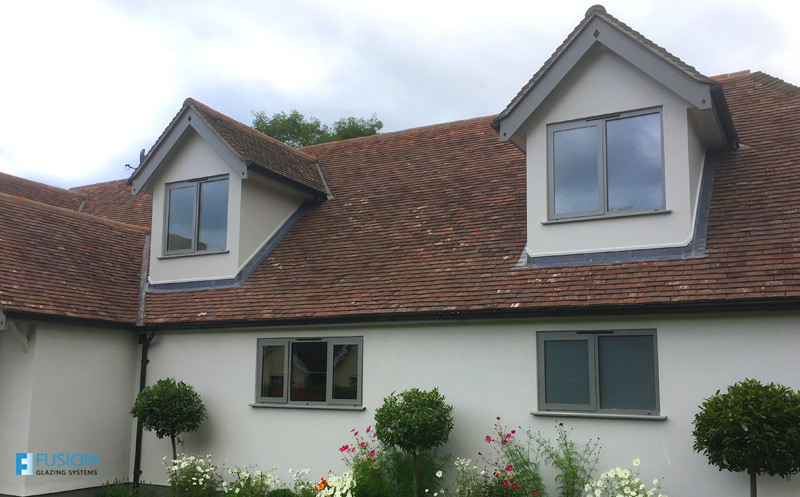

Smart Alitherm Windows

Smart Alitherm 300 & 600 slim aluminium window systems

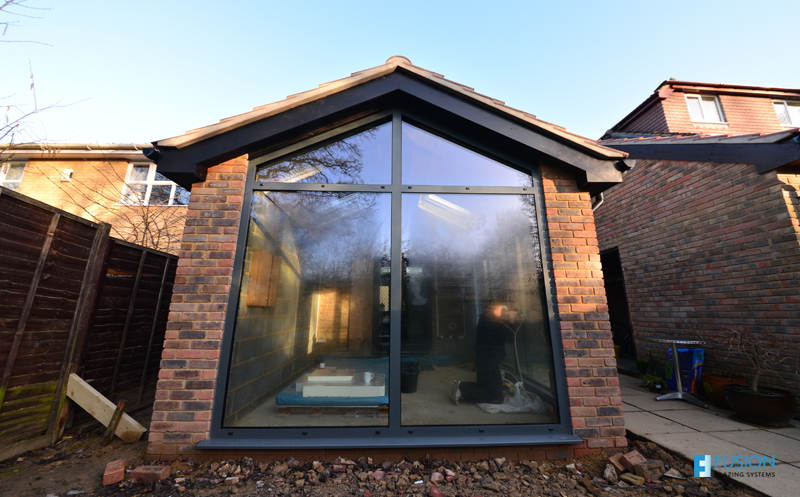

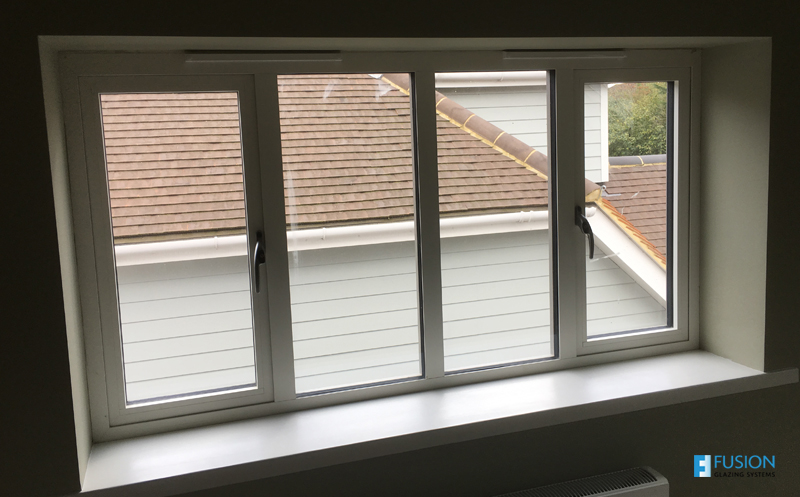

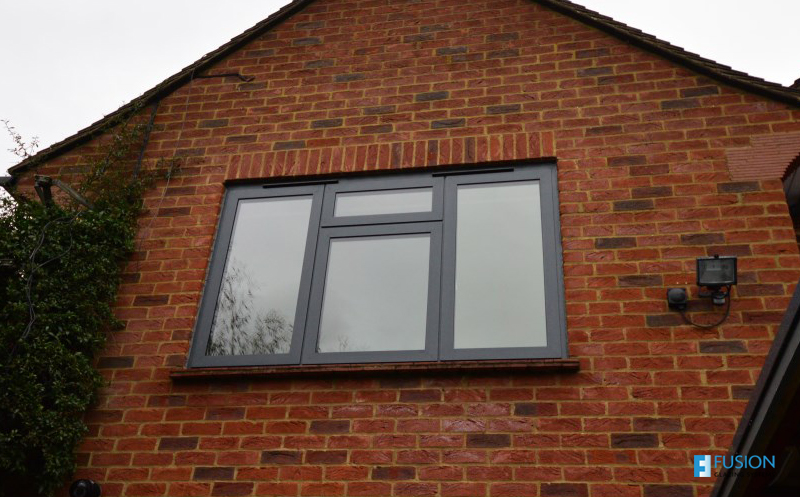

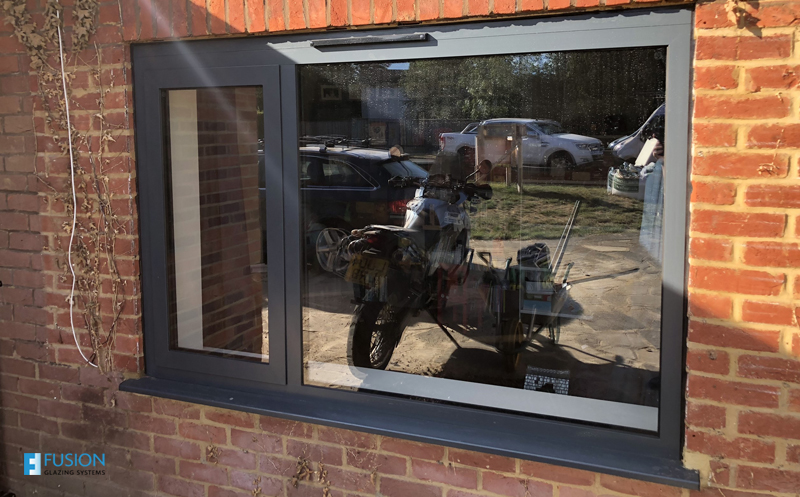

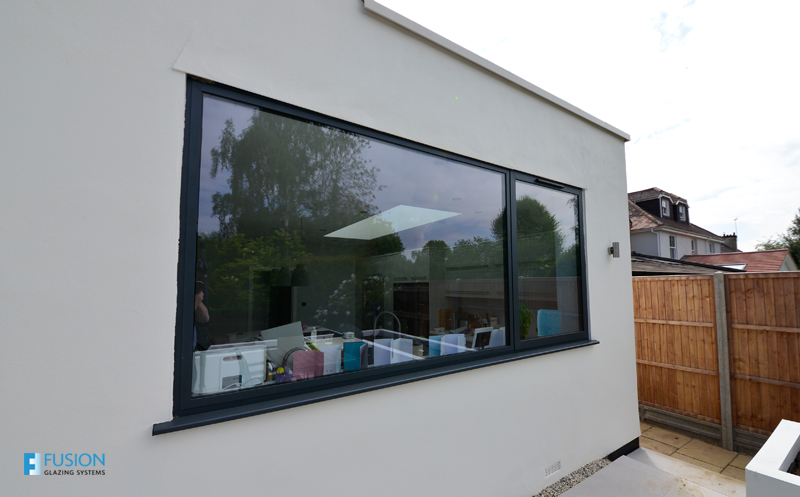

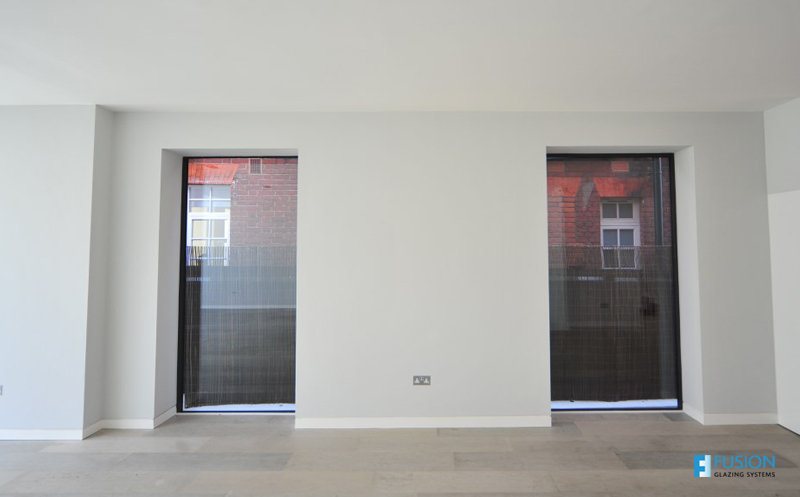

Smart Alitherm window system, is a high-performance window, slim framed or standard sized, high security and good value for money. This versatile range of profiles can provide many solutions for residential applications. It can create traditional casement windows, or contemporary elegant style windows designed for modern homes.

Smart Alitherm profiles utilise Smart’s innovative polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside. This technology significantly reduces thermal transmittance and enhances the overall U Value of a product and is designed to meet the exacting requirements of Document L 2010.

Smart Alitherm windows are available in a choice of standard or non-standard RAL colours. We could also supply it in dual colour.

* British Standard Kitemarked system KM 81580 KM 81543
* Smart Alitherm 300 system features an extended polyamide thermal break which improves the
overall U Value of the profile, allowing the window to achieve a Window Energy ‘A’ Rating when used in conjunction with the correct double or triple glazed unit
* The system is suitable for both internally or externally beaded, side or top hung open out windows
* Smart Ailitherm 600 system can achieve Window Energy ‘B’ Rating
* Profiles feature an extended polyamide thermal break to enhance thermal performance
* Frame options for both standard and slim-line stays
* Option of either multi-point or cockspur locking handles





Smart Alitherm Brochure

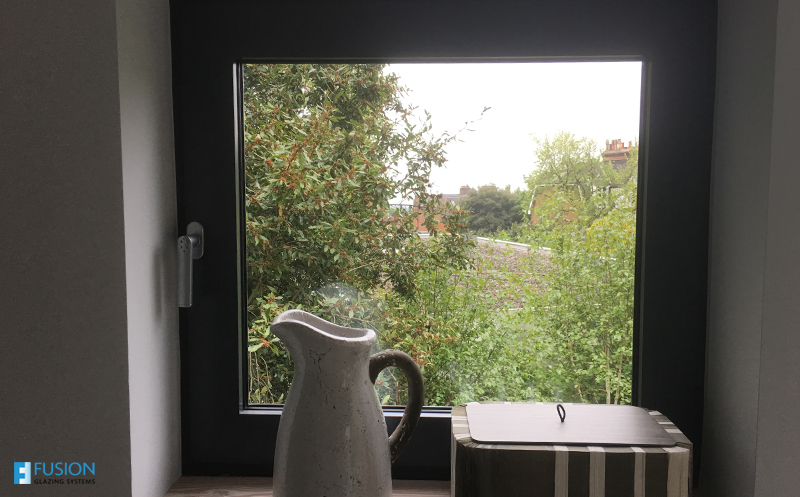

Smart Visoline Tilt and Turn Windows

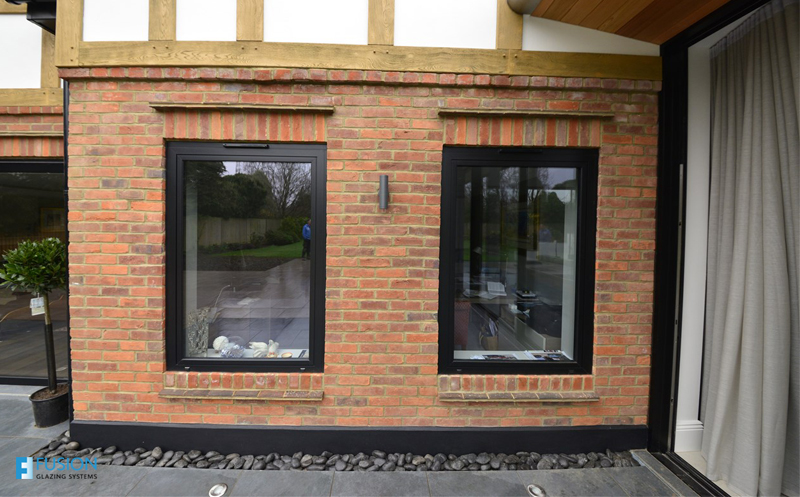

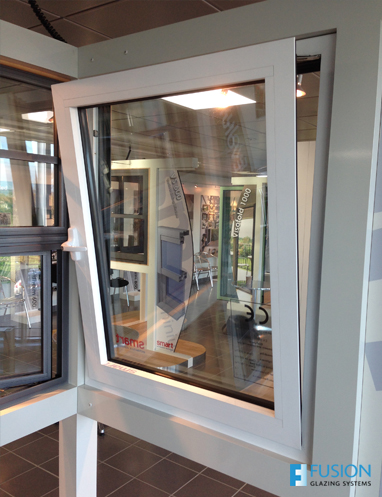

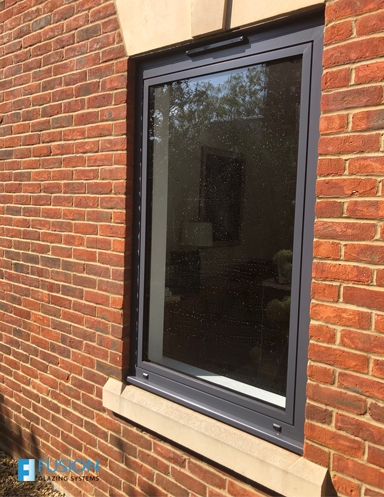

Visoline Tilt and Turn is a flat faced contemporary aluminium high performance window system. It is suitable for use as a window, but also to act as door. Visoline is very useful for all types of residential and commercial applications. If you need a window to be an opener, but it is too big to be side hung or top hung, the tilt and turn window becomes a great alternative.
Tilt and Turn windows open inwards only. It has a double gearbox allowing the top of the window to ‘Tilt’ inwards. Or it can swing inwards in the ‘Turn’ function. If the panel is very large the turn function may have to be locked off or restricted.

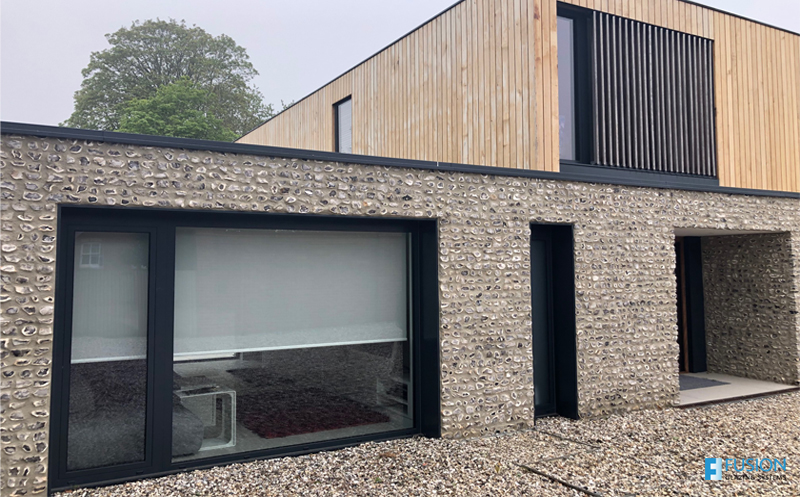

FGS Slim Tilt and Turn Windows

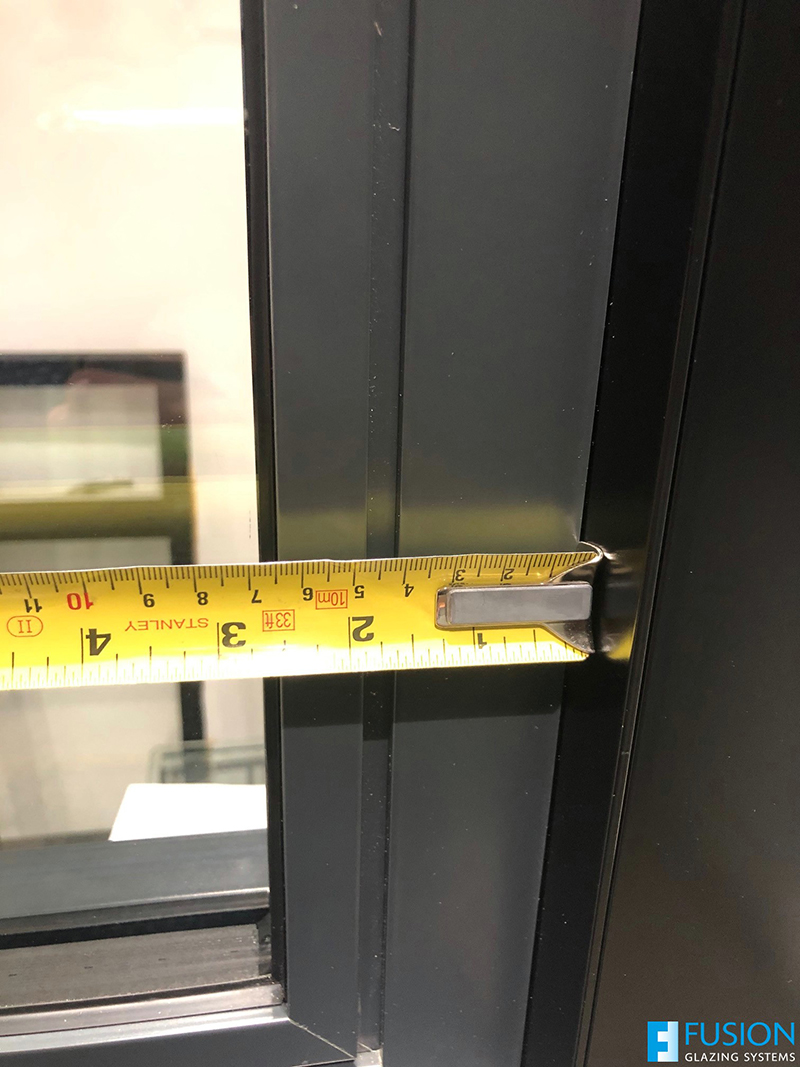

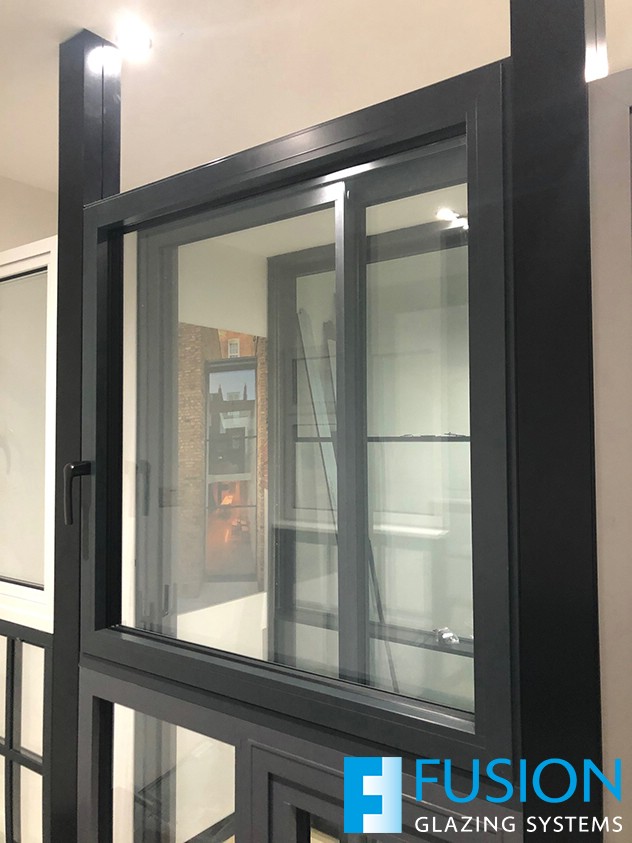

Fusion Glazing Systems offers a very slim high performance tilt and turn window system. With only 65mm of total frame between glass and wall, it is the slimmest Tilt and turn window in the UK.

FGS Tilt and Turn Window System, is an open inwards window. It can tilt inwards at the top for ventilation, in a secure open position, and then turn inwards. It can achieve fairly large openings. Double French casement configuration is possible too. It can be large enough as a single panel to look like, and work like a door.

We can powder coat the window the Classic RAL colour of your choice. Handles can be black, satin silver or white.

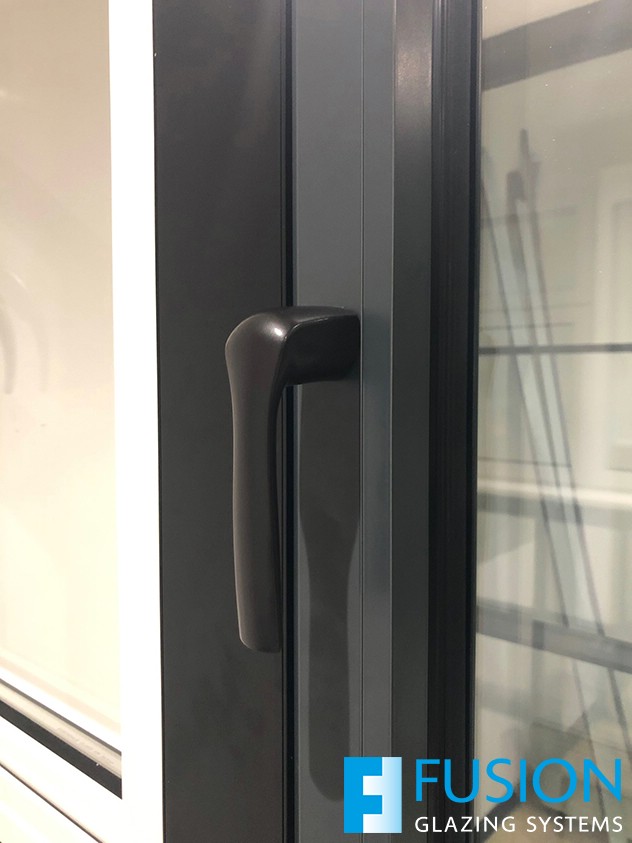

The handle can be plain for simplicity or have a key for added security. The window can come with or without a cill.

Min max sizes:
Single window:
Max Width (mm):  1100mm
Max Height (mm):  2100mm
Single window tilt and turn with bottom panel fixed:
Max Width (mm):  1275mm
Max Height (mm):  2450mm
Double window:
Max Width (mm):  1805mm
Max Height (mm):  2417mm
Performance:
Air Permeability class: 4
Water tightness class: 9A
Resistance to wind load class: C2
Performance:
Air Permeability class: 4
Water tightness class: E750
Resistance to wind load class: C4





















FGS Heritage 47 Crittal Replacement Window System

This slim window system has been designed to offer a modern solution for heritage and renovations applications where the requirement to replace old steel windows is essential.

FGS Heritage 47 provides the ideal solution for heritage applications such as listed building renovations and large-scale replica-refurbishment projects where planning constraints are to be considered.

It is a high-performance window system with innovative polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside. This technology significantly reduces thermal transmittance and enhances the overall U Value of a product and is designed to meet the exacting requirements of Document L 2010.

The window is designed to be built as a series of horizontal modules which can be stacked using horizontal couplers to form a multi-part window featuring a specially design drip bar between modules.

FGS Heritage 47 has been tested to PAS 24:2012 for casement windows and fixed lights.

• Fixed windows
• Single or double sash, side hung open out casements
• Top hung open out casements
• Polyamide thermal break provides enhanced thermal performance
• Designed as a direct replacement for steel windows

Performance:

WER Rating: B
U Value: 1.5W/m²K (using 1.0W/m²K glass unit)
Air: Class 4, 600Pa
Water: Class 9A, 600Pa
Wind: Class AE, 2400Pa Document
L Compliant: Yes
Kitemark: Yes
BS 6375-1:2009: Yes
BS 4873: Yes

Dimensions:

Side Hung Max Width: 700mm
Side Hung Max Height: 1400mm
Side Hung Max Weight: 40kg
Top Hung Max Width: 1400mm
Top Hung Max Height: 1300mm
Top Hung Max Weight: 35kg
Single Door Max Width: 900mm
Single Door Max Height: 2100mm. But Fixed elements can be added above the doors to increase the overall height
Glazing: 24mm, 28mm, 32mm & 36mm double or triple glazed units
Frame Depth: 47mm
Typical Sightlines: 59mm



















FGS35 Brochure



Schüco

Schüco Windows - AWS range
Schüco windows are the ultimate in German precision engineering. It is a robust window system, perfect for both commercial and residential buildings.
It does have larger frame sizes. But Schüco products are built to last. Exceptional insulation and weathertight gaskets eliminate draughts and ensure your comfort. These windows are contemporary, performs extremely well and keeps the weather out and the heat in. Year after year.
Schüco profiles are made in Germany. The windows are then fabricated by Fusion Glazing Systems in our factory in Uxbridge West London. We have a manufacturing licence under the Schüco Brand.
Opening configurations on offer:

• Inward opening or outward opening window panels
• Side hung, bottom and top hung windows
• Tilt and turn windows, which only open inwards, for larger vent sizes
• AWS 50 – 75 range
• Max width side hung vent: 900mm
• Max height side hung vent: 1400mm
• Max width tilt and turn vent size: 1400mm
• Max height tilt and turn vent: 2400mm H

Thermally broken profiles (DIN EN 12207)
Security class up to RC3











Schüco AWS Brochure
